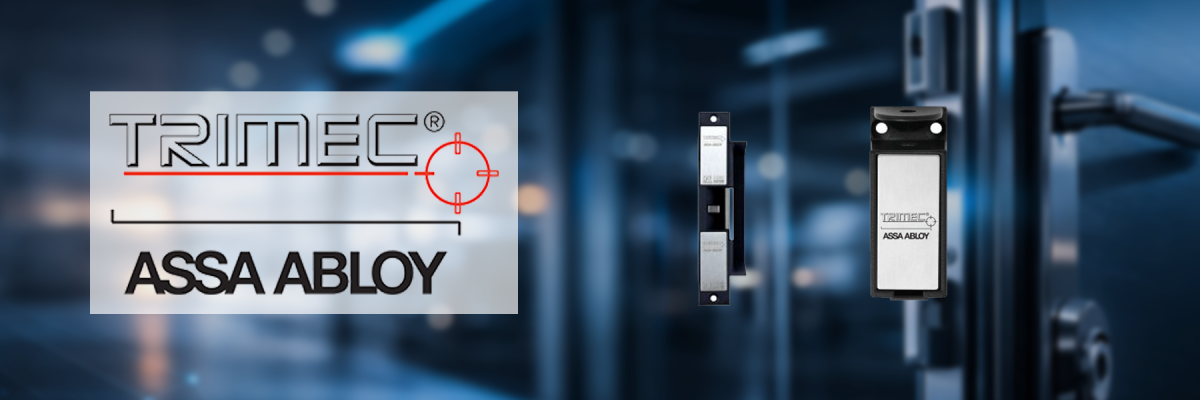

Since 1990 Trimec Technology has been supplying superior products to the access control industry. The mainstay of the early business was the ES2000 which was revolutionary in design, being the first strike to be interchangeable from Fail Safe to Fail Secure.

Electric Strikes

es9100-series-pre-load-strike_1x1
ES9100 Series Pre-Load Strike with Door Position Monitoring​

Operates under pre load up to 25kg | Door Position Monitoring Output | Lock Status and Latch Position Monitoring

EL110_1x1.jepg
Trimec EL110 Electric Cabinet Lock

Fail safe/fail secure changeable on site | Flexible alignment: has a 5mm XY adjustment after installation

ES3000_1x1
Trimec ES3000 Series Monitored Electric Strike

Fail safe/fail secure changeable on site | Available in 12VDC | 850kg holding force | 1 million cycles endurance rating

ES9100 Series Pre-Load Strike with Door Position Monitoring

Key Features

● Operates under pre load up to 25kg

● Door Position Monitoring Output

● Lock Status and Latch Position Monitoring

Output

● Easy field selectable fail safe/fail secure

● Multi voltage 10-30VDC

● 1300kg holding force

● 2.5 million cycles endurance rating

● Latch keeper is significantly quieter in operation

● Weather resistant (IP54)

● Pre-Drilled for Extension Lips

● Mounting tabs included

● Non handed

● TRICARE® 5 Year Warranty (Padde Series)

● Built in Protection Diode

Trimec EL110 Electric Cabinet Lock

Key Features

● Fail safe/fail secure changeable on site

● Flexible alignment: has a 5mm XY adjustment after installation

● Low current consumption uses only 175mA @ 12Vdc or 88mA @ 24Vdc

● Available in 12VDC or 24VDC

● Self-latching in fail secure mode

● Solenoid rated for continuous use

● Australian designed

● TRICARE® 5 Year Warranty

Applications

● Cabinet locking

● Swing or sliding cabinet doors

Standards and Compliance

● CE approved (EMC, ROHS & REACH)

● Regulatory Compliance Mark (RCM) approved

Trimec ES3000 Series Monitored Electric Strike

Key Features

● Fail safe/fail secure changeable on site

● Available in 12VDC

● 850kg holding force

● 1 million cycles endurance rating

● Stainless Steel locking pins

● Continuously rated solenoid

● Optional mounting kit

● Australian designed

● TRICARE® 5 Year Warranty

Applications

● Timber or metal doors

● Open in/open out doors

● Suitable for use with all access control systems

Standards and Compliance

● Approved to UL1034 (highest level)

● CE approved (EMC, ROHS & REACH)

● Regulatory Compliance Mark (RCM) approved

Electromagnetic Locking

Z-Series-Single-Monitored-Electromagnetic-Locks_1x1
Trimec Z Series Single Monitored Electromagnetic Locks

Fail-safe: unlocks when power is removed | Easy installation: suitable for both new and retrofit usage | High holding force: refer to the technical data overleaf

z-series-double-monitored-electromagnetic-locks_1x1
Trimec EL110 Electric Cabinet Lock

Fail safe/fail secure changeable on site | Flexible alignment: has a 5mm XY adjustment after installation | Low current consumption uses only 175mA @ 12Vdc or 88mA @ 24Vdc

Z4 Recessed Electromagnetic Locks_1x1
Trimec ES3000 Series Monitored Electric Strike

Fail-safe: unlocks when power is removed | Easy installation: suitable for both new and retrofit usage | High holding force: refer to the technical data overleaf

Trimec Z Series Single Monitored Electromagnetic Locks

Key Features

● Fail-safe: unlocks when power is removed

● Easy installation: suitable for both new and retrofit usage

● High holding force: refer to the technical data overleaf

● Self-alignment: armature plate pivots to accommodate door drop

● Silent operation: no humming or buzzing

● Dual voltage: site selectable 12 or 24 Vdc

● Monitoring: Reed Switch monitoring on all models. Hall-Effect monitoring on Z4 and Z8 models.

● Instantaneous release: smart electronics on the Z Series Electromagnets eliminate residual magnetism

Trimec EL110 Electric Cabinet Lock

Key Features

● Fail safe/fail secure changeable on site

● Flexible alignment: has a 5mm XY adjustment after installation

● Low current consumption uses only 175mA @ 12Vdc or 88mA @ 24Vdc

● Available in 12VDC or 24VDC

● Self-latching in fail secure mode

● Solenoid rated for continuous use

● Australian designed

● TRICARE® 5 Year Warranty

Applications

● Cabinet locking

● Swing or sliding cabinet doors

Standards and Compliance

● CE approved (EMC, ROHS & REACH)

● Regulatory Compliance Mark (RCM) approved

Trimec ES3000 Series Monitored Electric Strike

Key Features

● Fail-safe: unlocks when power is removed

● Easy installation: suitable for both new and retrofit usage

● High holding force: refer to the technical data overleaf

● Self-alignment: armature plate pivots to accommodate door drop

● Silent operation: no humming or buzzing

● Dual voltage: site selectable 12 or 24 Vdc

● Monitored versions: Hall-Effect status monitoring available on some models

Applications

● Various sliding door applications

Standards and Compliance

● CE Approved

● C-Tick Certified

Electromechanical Bolts

TB25-Drop-Bolt_1x1
Trimec TB25 Drop Bolt

High Security. Bolt is deadlocked in the extended position | Bolt position monitored | Door position monitor with integrated magnet into the strike plate (no need to install a separate reed switch)

TB25-Drop-Bolt_1x1
Trimec TB25KO Drop Bolt

High Security. Bolt is deadlocked in the extended position | Mechanical key override in the event of power failure. (Euro Profile Cylinder) | Bolt position monitored

Trimec_ES8200_Technilock_1x1
Trimec ES8200 Technilock

Side load Pre Load capable – Bolt will release with up to 70kg of side pressure – ideal for use on doors with seals or doors that are subjected to high wind load or air-conditioning pressures | Extreme holding force -Will withstand more than 2500kgs.

Trimec TB25 Drop Bolt

Features

● High Security. Bolt is deadlocked in the extended position

● Bolt position monitored

● Door position monitor with integrated magnet into the strike plate (no need to install a separate reed switch)

● Multiple Orientation, drop bolts will work horizontally or vertically

● Power to Lock/ Power to Open

● Continuously Rated Solenoid

● Tamper Proof. Lock cannot be defeated by slipping a metal object between lock and striker plate

● Intelligent Electronics. These intelligent bolts will attempt to re-close the bolt 8 times, allowing time for swing through doors to settle in the closed position

● Thermal Protection. In the event of solenoid overheat, a thermal fuse will operate, eliminating any fire risk

Trimec TB25KO Drop Bolt

Features

● High Security. Bolt is deadlocked in the extended position

● Mechanical key override in the event of power failure. (Euro Profile Cylinder)

● Bolt position monitored

● Door position monitor with integrated magnet into the strike plate (no need to install a separate reed switch)

● Multiple Orientation, drop bolts will work horizontally or vertically

● Power to Lock/ Power to Open

● Continuously Rated Solenoid

● Tamper Proof. Lock cannot be defeated by slipping a metal object between lock and striker plate

● Intelligent Electronics. These intelligent bolts will attempt to re-close the bolt 8 times, allowing time for swing through doors to settle in the closed position

● Thermal Protection. In the event of solenoid overheat, a thermal fuse will operate, eliminating any fire risk

Trimec ES8200 Technilock

Features

● Side load Pre Load capable – Bolt will release with up to 70kg of side pressure – ideal for use on doors with seals or doors that are subjected to high wind load or air-conditioning pressures

● Extreme holding force -Will withstand more than 2500kgs.

● Power to Lock and Power to Open (must be specified). Versions available on request. The bolt is not interchangeable in the field and configuration must be specified when ordering

● High speed operation – Locks in less than 1 second

● Multiple orientations – Can be mounted horizontally or Vertically

● Comprehensive monitoring – Bolt Locked, Door Closed, Optional Key- Override monitoring
